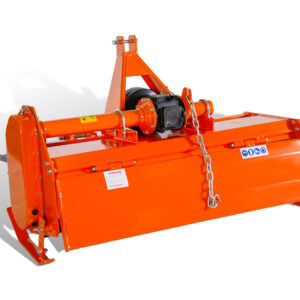

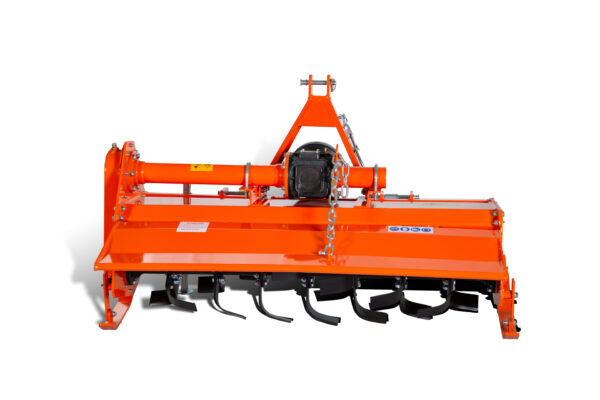

4′ Mid-Heavy Duty Rotary Tiller – 3-Point Hitch Cat 1 – With PTO Shaft (Copy)

Description

The 4′ Mid-Heavy Duty Rotary Tiller – 3-Point Hitch PTO is designed for more demanding soil preparation with compact and small tractors. Suitable for tractors in the 20–35 HP range, this model offers increased strength and durability for regular tilling work in tougher soil conditions, including established gardens, food plots, and heavier ground.

This tiller mounts to a standard Category 1 three-point hitch and operates from a 540 RPM PTO. Power is delivered through a chain-driven transmission, providing dependable torque transfer while protecting the driveline under load. The tiller features a cast iron gearbox for improved strength and long service life. Welded upper suspension components create a rigid frame, improving stability and durability during operation. The tiller includes a PTO shaft, making it ready for installation and use.

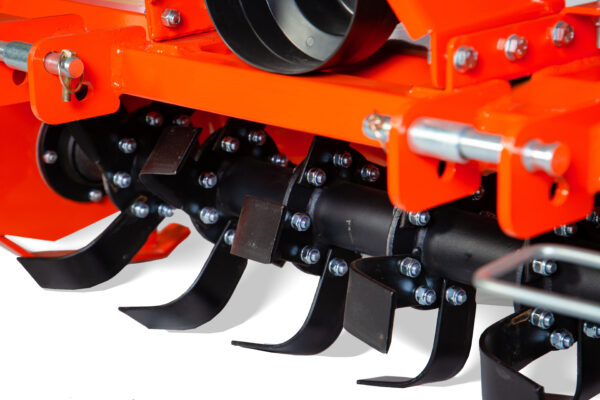

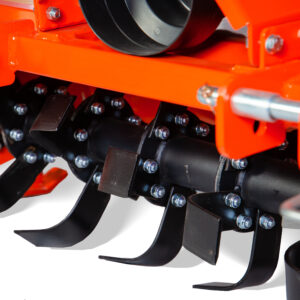

Equipped with 24 tiller blades, this tiller delivers consistent soil breakup across a 4 ft (1200 mm) working width. Adjustable tilling depth, ranging from 3–5 in (80–120 mm), allows the operator to match ground conditions and application requirements. A hand-adjustable chain tensioner simplifies routine maintenance, while a movable guard bar provides additional protection and adaptability.

For safer and cleaner operation, rear deflection and side protection plates help control soil throw during tilling. The reinforced structure and stable design make this mid-heavy duty tiller an excellent choice for users who need more durability than a light-duty unit without stepping up to a full heavy-duty commercial model.

Key Features:

• Fits Category 1 3-point hitch

• Designed for compact and small tractors (20–35 HP)

• 540 RPM PTO-driven (PTO shaft included)

• Chain-driven transmission for dependable power transfer

• Cast iron gearbox for added strength and longevity

• Welded upper suspension frame for increased rigidity

• 4 ft (1200 mm) working width

• 24 tiller blades

• Adjustable tilling depth (3–5 in / 80–120 mm)

• Hand-adjustable chain tensioner

• Movable guard bar

• Rear and side protection plates to control soil throw

• Firm, stable construction for mid-heavy duty applications

Specifications:

• Working Width: 4 ft (1200 mm)

• Tilling Depth: 3–5 in (80–120 mm)

• PTO Input Speed: 540 RPM

• Recommended Tractor Power: 20–35 HP

• Blade Quantity: 24 pcs

• Implement Weight: 397 lb (180 kg)

• Overall Dimensions: 55″ × 27″ × 30″ (1400 × 680 × 750 mm)

• Packing Size: 53″ × 27″ × 27″ (1350 × 680 × 680 mm)

Use Disclaimer:
This rotary tiller is intended for mid-heavy duty soil preparation. It is not designed for rocky terrain, heavy roots, or breaking virgin ground. Always operate within the tractor manufacturer’s rated PTO, hitch, and weight limits, and follow all safety guidelines outlined in the operator’s manuals.
